Description

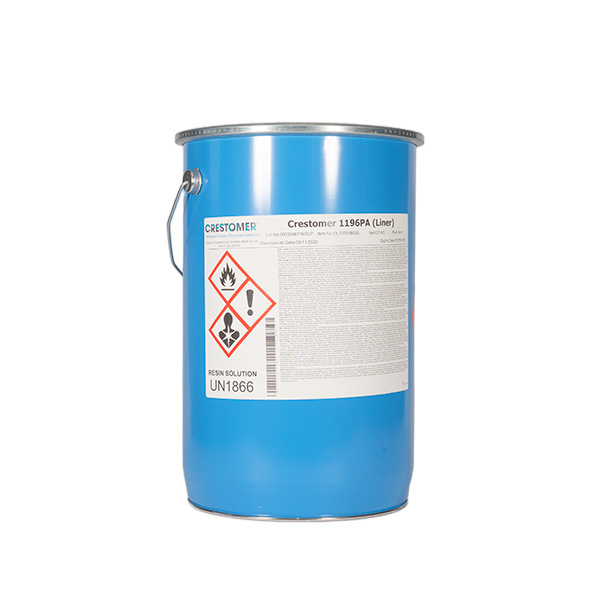

Crestomer 1196PA is a low density, structural gap-filling core adhesive for use in sandwich construction where requirement is
for a strong, tough, highly impact-resistant structure. It is based on Scott Bader’s innovative urethane acrylate technology and
exhibits exceptional impact strength and toughness. Crestomer® 1196PA has been formulated to bond core materials such as
rigid PVC foam and balsa to cured or semi-cured FRP skins. Using Crestomer® 1196PA gives a significantly tougher and more
durable structural bond than a polyester resin/ glass structure or polyester bonding adhesive. In addition, Crestomer® 1196PA
provides significant weight savings, reduced styrene emissions and greatly improved cosmetics with the elimination of core
print through.
Features and Benefits
Urethane acrylate base
Low density adhesive
Reduced core print through
Highly thixotropic
Colour change system
Low exotherm during cure
Easy to apply
Excellent adhesion
Reduced weight of end product
Improved aesthetics of end product
Non sagging on vertical surfaces
Visual check for effective catalyst mix
Low risk of print through
Saves you time and cost
Application properties
Working time1 50 minutes
Fixture time2 6.5 hours
Gap filling 1 – 30 mm/ 0.04 – 1.2 i
Application properties
Working time1 50 minutes
Fixture time2 6.5 hours
Gap filling 1 – 30 mm/ 0.04 – 1.2 inch
Colour change (over cure) Purple to Pink
Recommended application
temperature 18°C – 25°C / 64°F – 77°F
Mechanical properties
Tensile strength6 19 – 22 MPa
Tensile modulus6 1000 – 1500 MPa
Tensile elongation6 4 – 7%
Hardness 69 Shore D
Water Absorption7 1.72%
Approvals Lloyds
Tensile Strength Balsa8 10.2 MPa
Tensile Strength PVC Foam 6.3 MPa
Approvals Lloyds, DNV.GL
